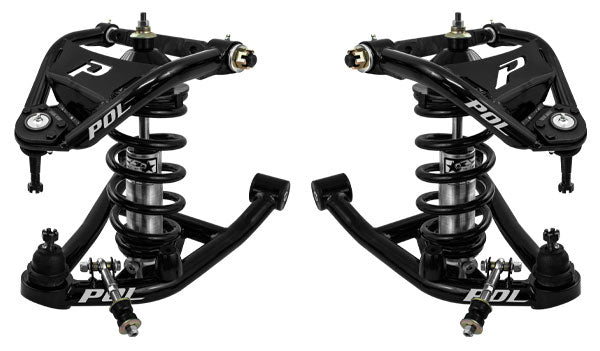

1964-67 Chevy / GM A-Body Stage 5 Tubular Control Arm & Coil Over Suspension Kit
Details
Taking it to the next level! The ALL NEW Hi-Performance coil over suspension kit for the 1964-67 GM A-Body is far superior in handling and performance. Our "new" design tubular upper control arms improve front end geometry. The new lower tubular arms include a cradle style lower mount to be used with a 5/8" bushing. NO "T" bar mount like on the cheaper kits. All new Aldan Phantom Series single or double adjustable coilovers deliver superior handling and ride quality for a drastic improvement over stock suspension. Aldan’s high tensile coil springs are designed as a direct fit and true stand alone coil over suspension. Ride height adjustable shock allows adjustment up to 2.0" drop. Entire system is "Bolt On". Made in the USA!
Kit includes:

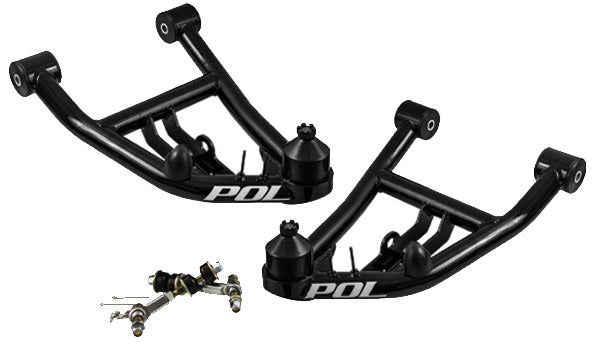

- Tubular Lower Control Arms

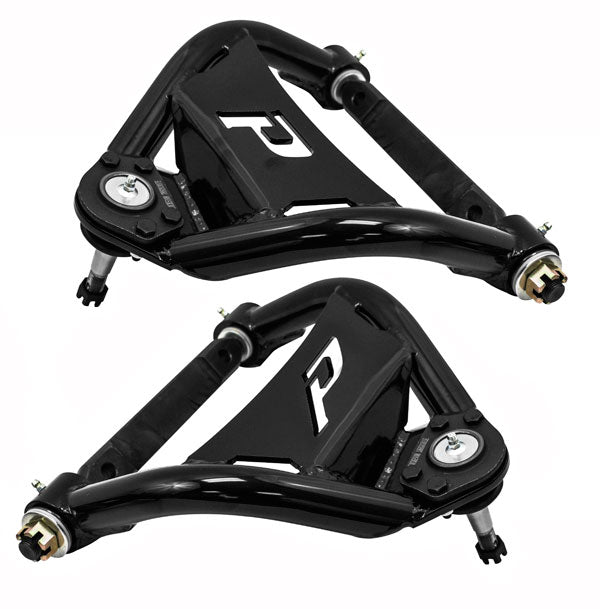

- Tubular Upper Control Arms
- Delrin Bushings
- 2.0 degrees added caster
- Ball Joints
- Cross Shafts

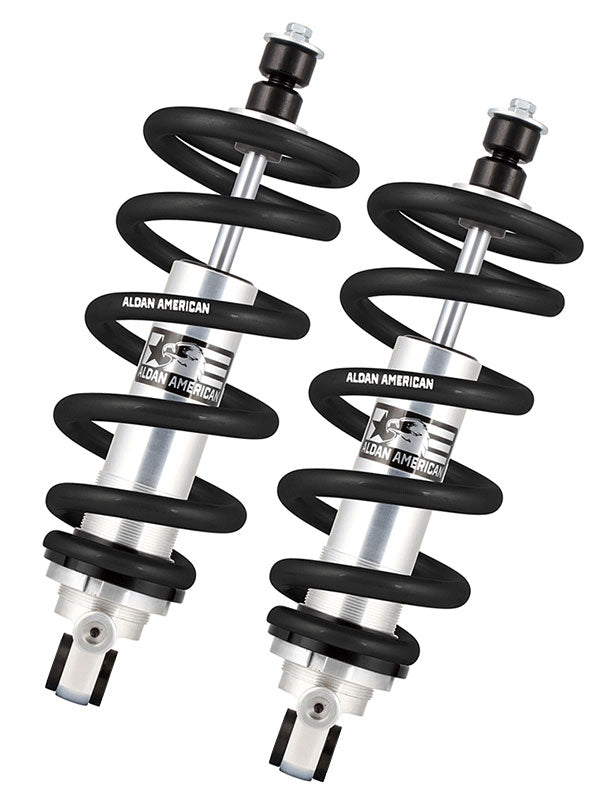

- Aldan Coil Overs
- Mounting Hardware
Available upgrades:
- Double Adjustable Coil-Overs
Notes:
Small Block Spring Rate = 450#
Big Block Spring Rate = 550#
Includes limited warranty
Complete and ready to bolt on
Powder coated black
Angled front ball joint relief design on the lower arms
No Cutting or Welding Needed
Ride Height Adjustable – Lowers Vehicle from stock height -2.0” Lower Than Stock Height
Serviceable – Serviceable & Rebuildable Aldan American Coil-Overs
Will not work with vehicles equipped with drum brakes.
Big Block Spring Rate = 550#
Includes limited warranty
Complete and ready to bolt on
Powder coated black
Angled front ball joint relief design on the lower arms
No Cutting or Welding Needed
Ride Height Adjustable – Lowers Vehicle from stock height -2.0” Lower Than Stock Height
Serviceable – Serviceable & Rebuildable Aldan American Coil-Overs
Will not work with vehicles equipped with drum brakes.
CA Prop 65 Warning - cancer and reproductive harm www.p65warnings.ca.gov
What does this fit?
1964 1965 1966 1967 Beaumont
1964 1965 1966 1967 Buick Sport Wagon
1964 1965 1966 1967 Buick Skylark
1964 1965 1966 1967 Buick Special
1964 1965 1966 1967 Chevrolet Chevelle
1964 1965 1966 1967 Chevrolet El Camino
1964 1965 1966 1967 Oldsmobile Vista Cruiser
1964 1965 1966 1967 Oldsmobile 442
1964 1965 1966 1967 Oldsmobile Cutlass and F-85
1964 1965 1966 1967 Pontiac GTO
1964 1965 1966 1967 Pontiac Tempest
1964 1965 1966 1967 Pontiac LeMans
1964 1965 1966 1967 Oldsmobile Cutlass Supreme
1964 1965 1966 1967 Buick Sport Wagon
1964 1965 1966 1967 Buick Skylark
1964 1965 1966 1967 Buick Special
1964 1965 1966 1967 Chevrolet Chevelle
1964 1965 1966 1967 Chevrolet El Camino
1964 1965 1966 1967 Oldsmobile Vista Cruiser
1964 1965 1966 1967 Oldsmobile 442
1964 1965 1966 1967 Oldsmobile Cutlass and F-85
1964 1965 1966 1967 Pontiac GTO
1964 1965 1966 1967 Pontiac Tempest
1964 1965 1966 1967 Pontiac LeMans
1964 1965 1966 1967 Oldsmobile Cutlass Supreme
