1960-62 Chevy, GMC Truck BlackOut Series Wilwood Hydropower Power Brake Booster
Details

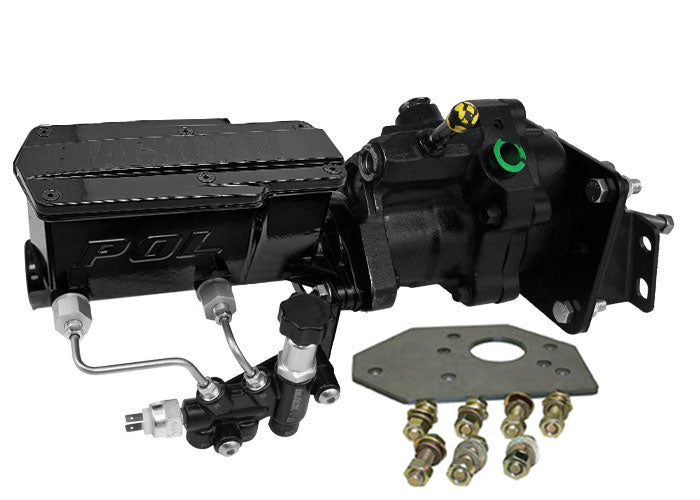

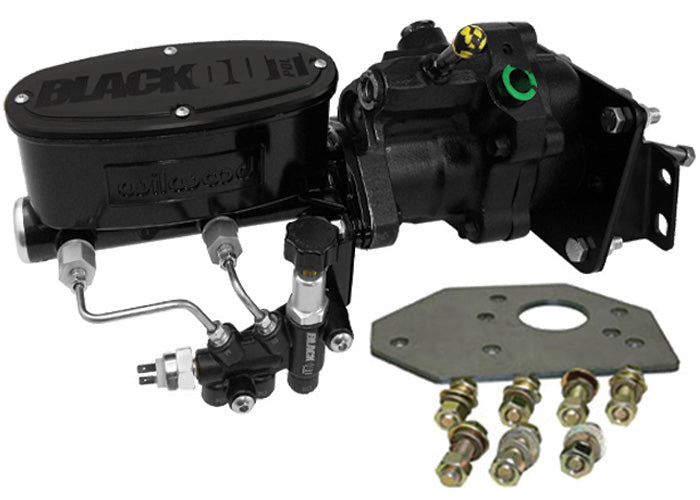

Our Hydropower hydraulic brake assist power booster fits 1960-62 Chevy and GMC trucks and generates up to 1800psi of line pressure to the brake calipers. It is fitted with a Wilwood master cylinder and a Black Out adjustable proportioning valve. This kit is powered by hydraulic line pressure from the power steering pump. Firewall and valve cover clearance is equivalent to a 7" diameter vacuum booster. The firewall brackets are correct for 1960-62 GM truck applications.
The average power steering pump puts out from 800psi to 1400psi line pressure. The Hydropower® uses this to convert to pressure to apply against the master cylinder. This greatly improves stopping performance and driver feedback. These hydraulic power boosters can be easily installed on an existing vacuum booster vehicle or used to convert a manual brake setup to power with ordinary hand tools and average mechanical ability.
Kit includes:
- Hydraulic brake assist power booster
- 1.125" bore Wilwood master cylinder (black finish)
- Black Out Adjustable proportioning valve, bracket and lines
- Works with front disc and rear disc or drum brakes
- Firewall Mounting brackets
- Limited Lifetime Warranty
Notes:

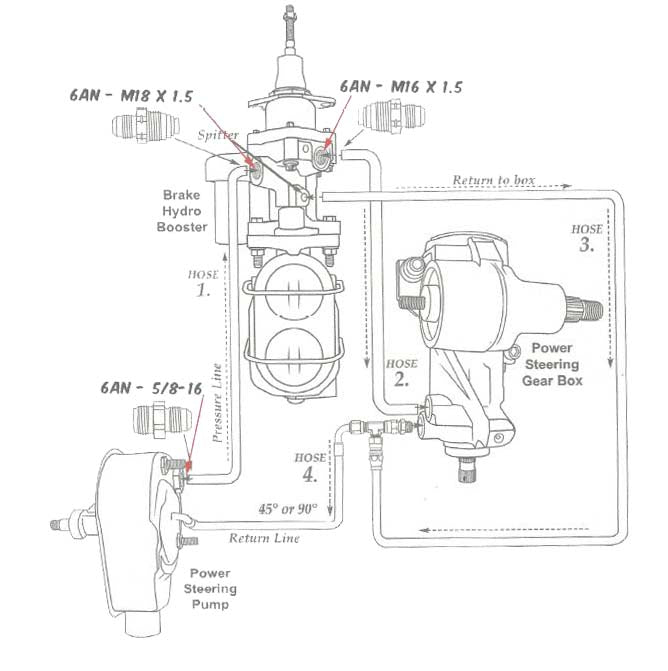

Steering hose hookup kits available in the Suggested Parts below.
These are remanufactured units.
