1951-59 Chevy, GMC Truck Rear Disc Brake Conversion Kit
Details
Performance Online now offers you the option of upgrading the rear of your 1951-59 Chevy and GMC truck to match the front. These rear disc brake conversion kits are available for 6 lug bolt pattern and come standard with GM ratcheting calipers. Must be used on rearends that have bolt on backing plates.

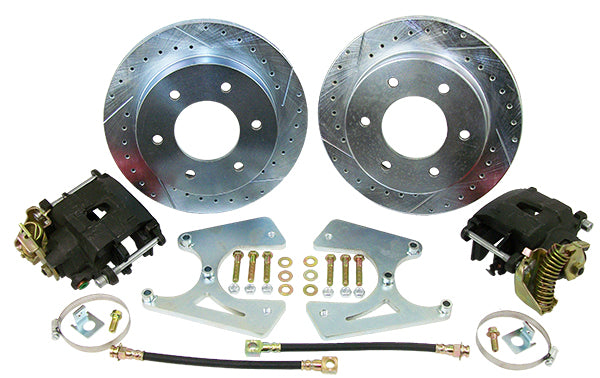

Kit includes:
- 11.625" vented brake rotors
- 6 x 5.5" Bolt pattern
- GM D154 calipers w/brake pads (mid 80's Cadillac Seville)
- Brake hoses and banjo bolts

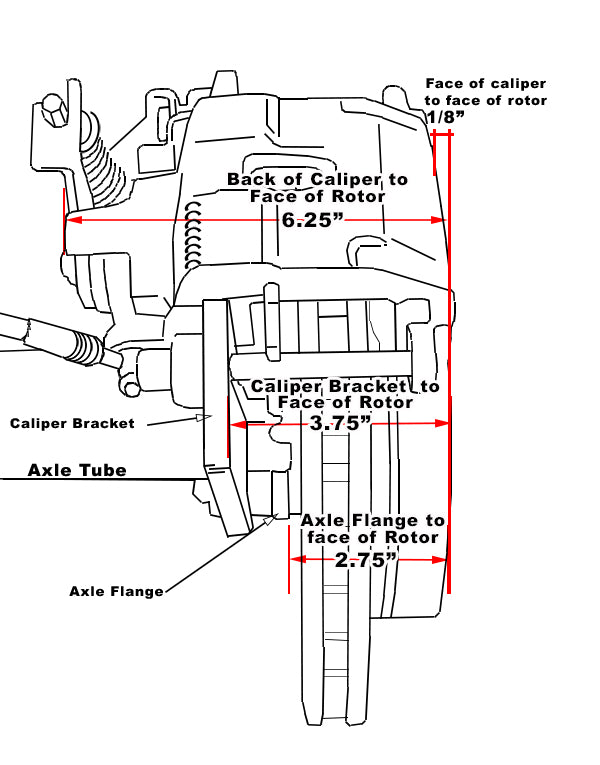

- Caliper Mounting Brackets 3.375" x 2.625" flange measurements
- Hardware
- Limited Lifetime Warranty
Available upgrades:
- Drilled & Slotted rotors, Add $84.65pr.
- Stainless Brake Hoses, Add $49.00pr.
- Powder coated calipers available in red or black Add $87.76pr.
Notes:
Rotor Dia 11.625"
Rotor disc thickness 1.050"
Overall height 2.375"
Hat height 1.375"
Hat thickness .250"
Index hole diameter 5-lug - 3.090"
Index hole diameter 6-lug - 3.542"
Minimum wheel size = 15" disc brake type
Only for use on GM Corporate 10-12 bolts
Rotor disc thickness 1.050"
Overall height 2.375"
Hat height 1.375"
Hat thickness .250"
Index hole diameter 5-lug - 3.090"
Index hole diameter 6-lug - 3.542"
Minimum wheel size = 15" disc brake type
Only for use on GM Corporate 10-12 bolts
CA Prop 65 Warning - cancer and reproductive harm www.p65warnings.ca.gov
What does this fit?
1951 1952 1953 1954 1955 1956 1957 1958 1959 Chevy, GMC 3100 1st and 2nd series trucks
