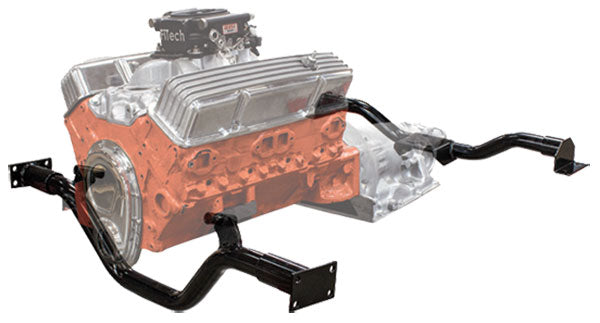

1947-59 Chevy, GMC Truck V-8 Engine and Transmission Crossmember Kit with Mounts

1947-59 Chevy, GMC Truck V-8 Engine and Transmission Crossmember Kit with Mounts
55-59 Chevy Truck with LS Conversion
Part #:TCM4759DR
$175.28
Mounts Type

Details

These 47-59 Chevy, GMC truck engine and transmission mounts are high quality items at a very moderate price. Engine crossmember mounts between the frame rails allowing you to set the engine wherever you want depending on your application. Transmission crossmember mounts to bottom of frame and allows clearance for aftermarket floor mounted power brake boosters. Works great for trucks converting to an LS engine

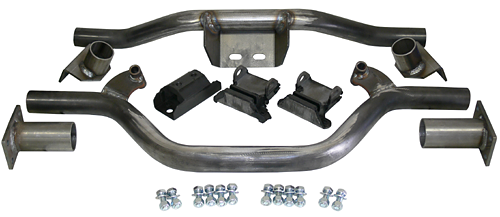

Kit includes:

  • .120" wall tubing
  • Transmission Crossmember
  • V-8 Engine Crossmember
  • Transmission Mount (rubber or poly urethane)
  • Engine Mounts (rubber or poly urethane)
  • Mounting Hardware
  • Installation Instructions

Notes:

Not recommended for Mustang 2 front end
Adjustable depending on where you position the end caps. From center of holes end to end 32" minimum to 33" Wide x 2" Drop.
Transmission crossmember. Fits TH350, TH400, 700R4, 4L60E, PowerGlide, Muncie 4 Speed and many others
Engine crossmember: Fits Chevy small, LS or big block V-8 engines.
CA Prop 65 Warning - cancer and reproductive harm www.p65warnings.ca.gov

What does this fit?

1947 1948 1949 1950 1951 1952 1953 1954 1955 1956 1957 1958 1959 Chevy, GMC 3100 Truck
